Description

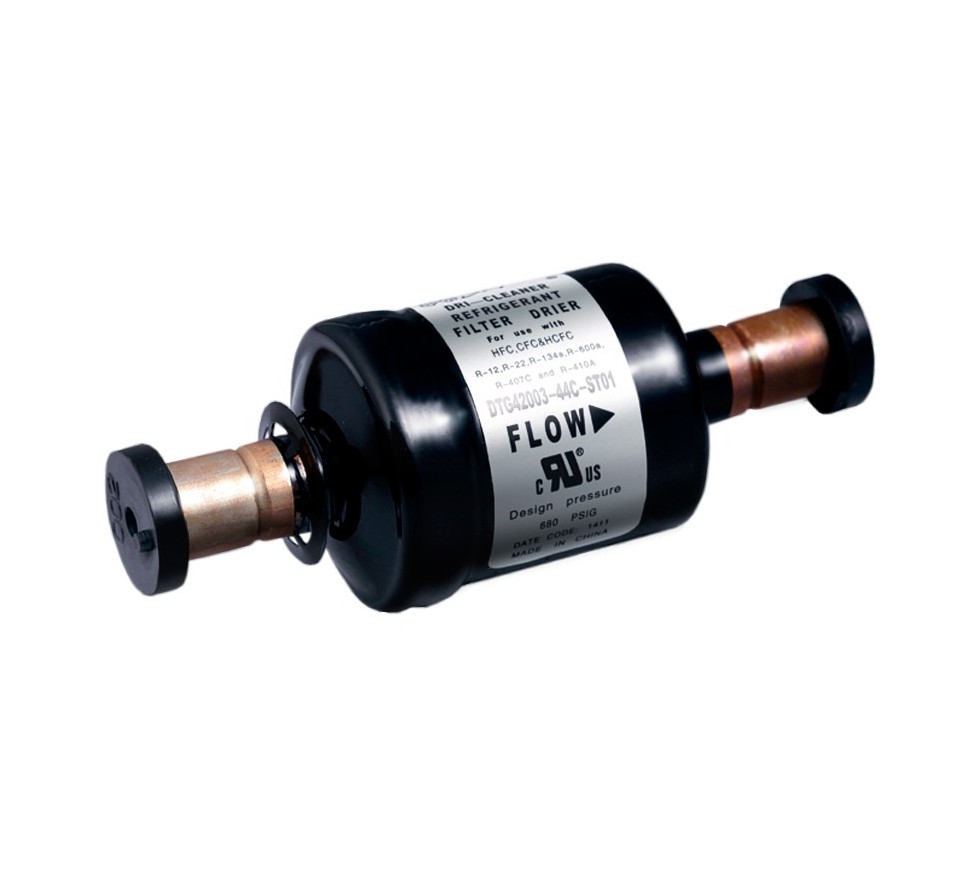

SANHUA DTG series filters are used in refrigeration systems with one-way flow, the filters absorb moisture, acid and filter impurities in the system.

Features:

• Effectively absorbs moisture, filters impurities, acids, paint residues and removes dirt from the system.
• Filter density: 20μm.
• Corrosion-resistant painting, withstanding 500 hours of salt tests.

General Specifications

• Applies to all common HCFC and HFC freons: E.g. R22, R134a, R404A, R407C, R410A, R507A...
• Working temperature min./max.: -30 ° C / + 55 ° C.
• Average temperature TS min./max.: -30 ° C / + 120 ° C.
• Maximum working pressure PS: 4.83 MPa (48.3 bar) - 700 PSI.
• Mounting position:
  • The flow direction must correspond to the arrow;
  • Best to install in liquid line.
• Certificates: UL / CSA and PED declaration.
