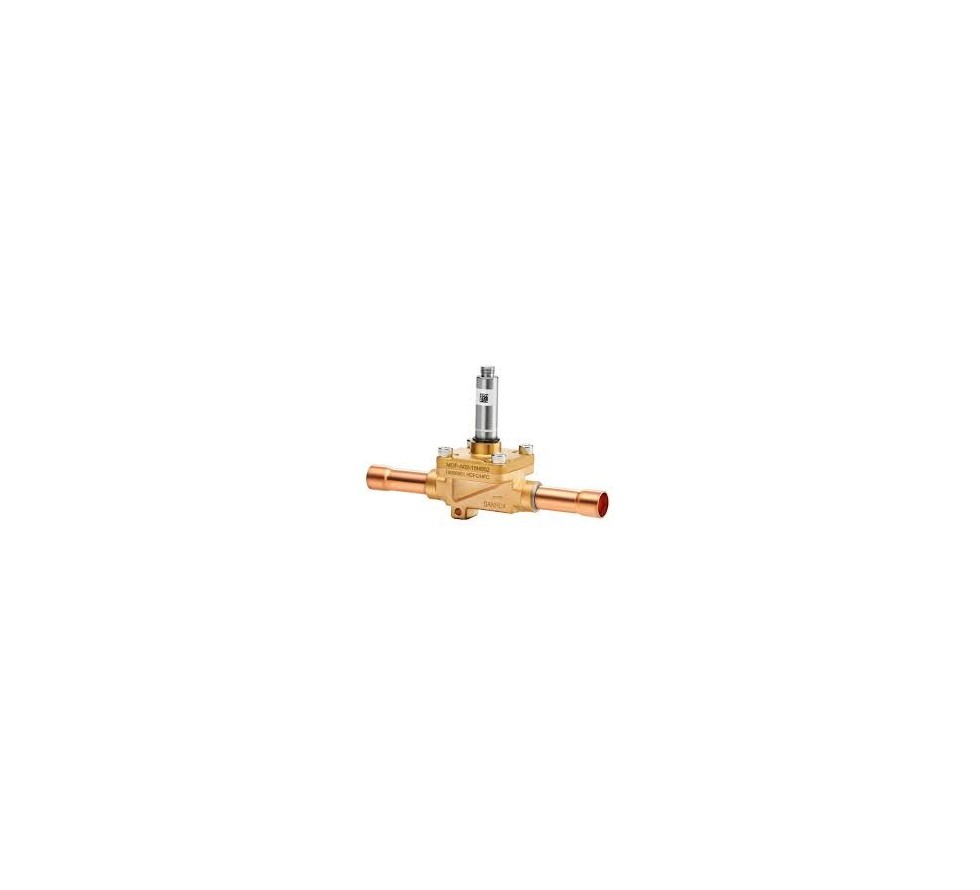

Solenoid valve MDF (inch thread)

10125011402

Details Technical specification

Brazed connection

Throughput

0.23 m³/h
0.8 m³/h

31,06 € /pcs (with VAT)

Tax included Delivery time in Lithuania: 3-5 days.

Quantity

In stock Quantity in stores

Delivery time in Lithuania: 3-5 days. Other delivery options

Free delivery applied

Description

SANHUA MDF series solenoid valves with inch connections are high-quality components designed for refrigeration, air conditioning, and heat pump systems. These valves ensure precise refrigerant flow control, reliable performance, and durability. With a wide range of size options, the MDF-A03 series is suitable for various systems that use inch connections.

✔ Wide range of sizes – from small (1/4") to large (2-1/8") connections.
✔ Reliable and durable construction – high-quality materials ensure longevity and reliable operation even under demanding conditions.
✔ Efficient and precise refrigerant flow regulation – helps optimize system performance.
✔ Universal application – suitable for various refrigeration, air conditioning, and heat pump systems.
✔ Easy installation – solder connection (ODF).

Technical Parameters Table

Model	Connection Size	Kv (m³/h)	PED Category	Dimensions (mm) (Length x Width x Height x Body Diameter)	Operating Pressure (MOP)	Nominal Voltage	Nominal Power	Operating Temperature	Refrigerant Compatibility
MDF-A03-3H 001	1/4"	0.23	4.3	102x30x53x82	4.3 MPa	230V AC	10W	-40°C ~ +120°C	R134a, R404A, R507
MDF-A03-20H 003	1-1/8"	5.00	4.3	214x52x53x117	4.3 MPa	230V AC	10W	-40°C ~ +120°C	R134a, R404A, R507
MDF-A03-10H 001	1/2"	1.90	4.3	127x42x53x95	4.3 MPa	230V AC	10W	-40°C ~ +120°C	R134a, R404A, R507
MDF-A03-3H 003	3/8"	0.23	4.3	102x30x53x82	4.3 MPa	230V AC	10W	-40°C ~ +120°C	R134a, R404A, R507
MDF-A03-6H 001	3/8"	0.80	4.3	111x36x53x88	4.3 MPa	230V AC	10W	-40°C ~ +120°C	R134a, R404A, R507

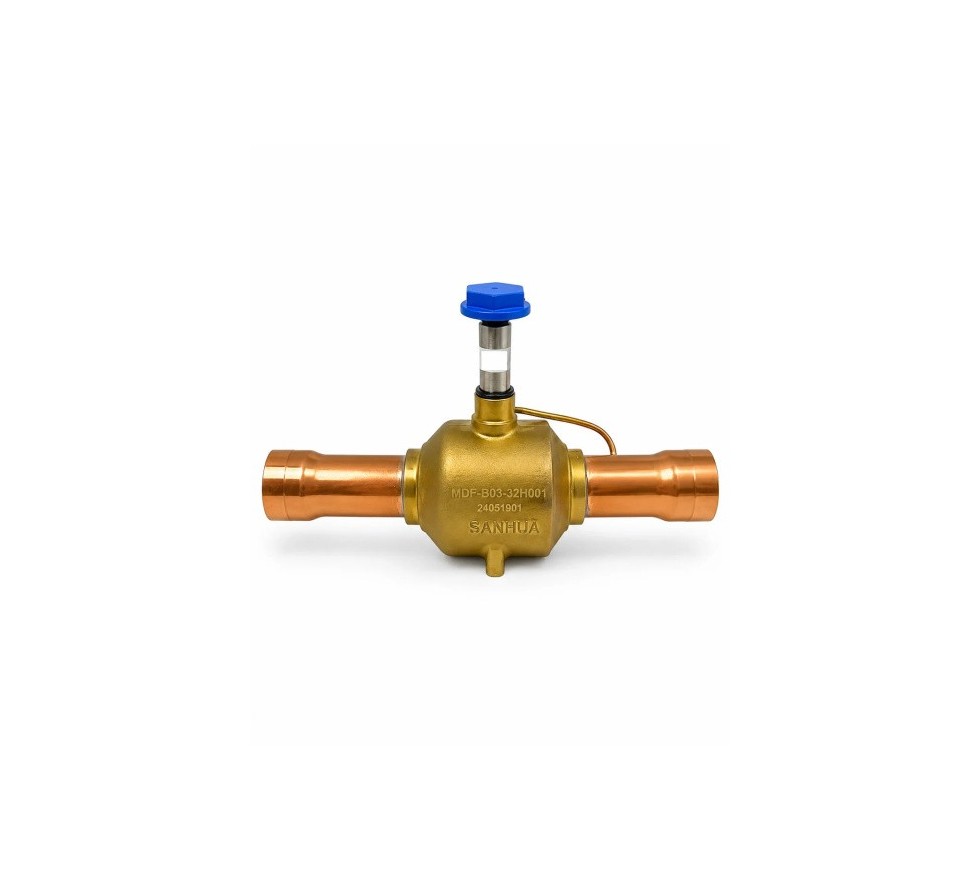

MDF-B03-32H 002	1-5/8"	15.00	II	281x76x53x144	4.3 MPa	230V AC	10W	-40°C ~ +120°C	R134a, R404A, R507
MDF-B03-40H 004	2-1/8"	25.00	II	281x84x53x152	4.3 MPa	230V AC	10W	-40°C ~ +120°C	R134a, R404A, R507
